DISCONTINUED - Kenwood KAC-M1804 Class-D Compact 4 Channel Class-D Marine Power Amplifier
$117.99
Out of stock
SKU
KAC-M1804
Expert Knowledge
Talk to a specialist
Unit Includes: Power Amplifier, Mounting hardware, and Instruction manual

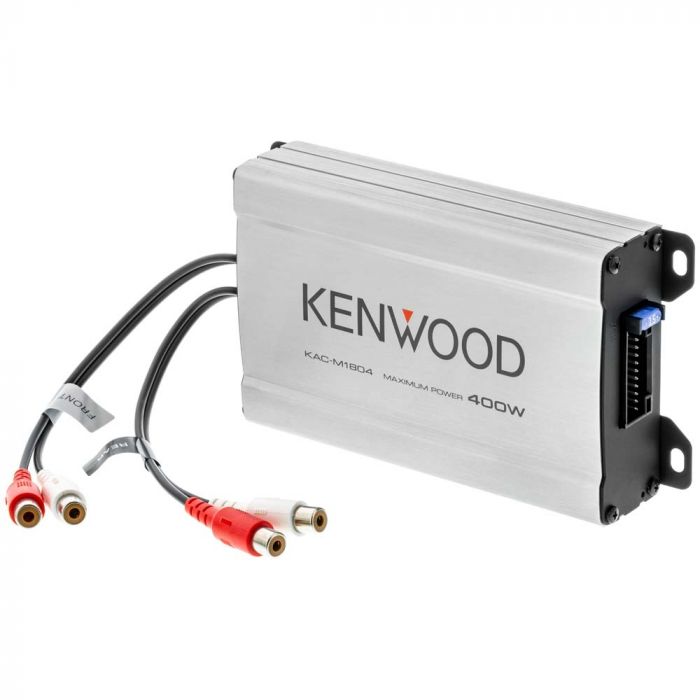

Kenwood KAC-M1804 Class-D Compact 4 Channel Class-D Marine Power Amplifier
Kenwood KAC-M1804 Class-D Compact 4 Channel Class-D Marine Power Amplifier
- Features
- Class D marine amplifier for compact size excellent efficiency
- Conformal coated circuit board suitable for marine or ATV applications
- Amplifier is ideal for motorcycles and other vehicles where conventional amplifiers will not fit
- Extruded aluminum heat sink design
- Speaker Level Input for easy integration to factory audio systems
- Signal Sensing Turn-on for easy integration to factory audio systems
- Frequency Response: 20Hz - 20kHz (+0dB, -1dB)
- Signal to Noise Ratio: 90dB (Reference: Rated Power into 4Ohms at 14.4V)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (4Ω to 8Ω allowable)
- CEA-2006 Compliant
- Max Power Output
- 400 Watts
- RMS Power Output
- 45 Watts x 4 at 4 ohms
- Inputs and Outputs
- 1 - Battery & Ground
- 4 - Speaker level inputs
- 4 - Speaker Outputs
- Dimensions
- 140mm x 34mm x 90mm
- 5-1/2" (W) x 1-5/16" (D) x 3-9/16" (H)
| Manufacturer | Kenwood |
|---|---|
| Part Number | KAC-M1804 |
| Amplifier Topology Class | Class D |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Strappable Amplifier | No |
| Speaker level inputs | Yes |
| Gain Control | No |
| Bass Knob / Remote Gain | No |
| Built in Crossover | None |
| Cooling Fan | No |
| Color | Silver |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 019048207777 |
| Return period | 30 days |
| Exchange period | 30 days |
