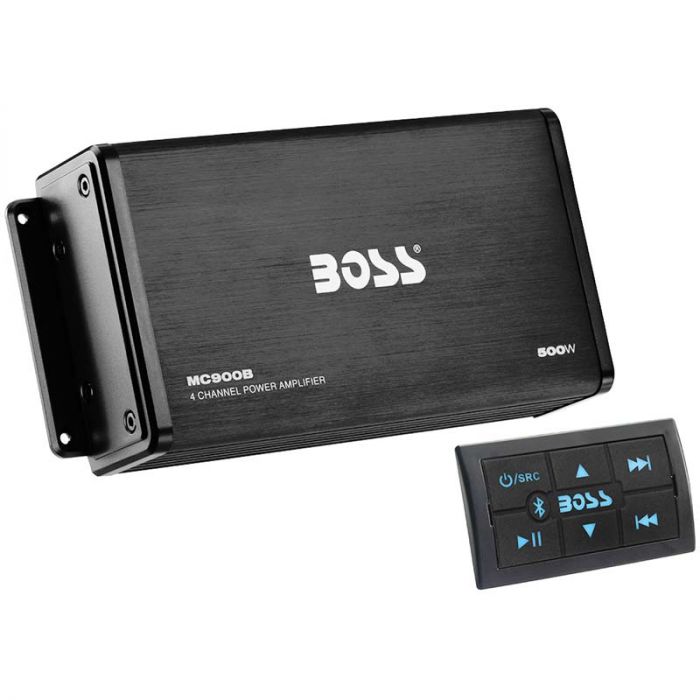

Boss Audio MC900B UTV / Marine 500-Watt 4-Channel Amplifier with Bluetooth
Expert Knowledge
Talk to a specialist
- Bluetooth Amplifier for streaming audio direct to speakers
- Ideal for motorcycles, UTV/ATV, side by sides & powerboats
- Class AB 4 Channel amplifier
- Waterproof with conformal coated circuit board and UV coatings
- Illuminated multi-functional controller
- 500 Watts Maximum output
Boss Audio MC900B All-Terrain/Marine 500-Watt 4-Channel Class AB Amp with Bluetooth®
-
Features:
- Bluetooth Amplifier for direct streaming audio from your phone to speakers without a head unit or radio
- Full range class AB for excellent sound quality
- Ideal for motorcycles, UTV/ATV, side by sides & powerboats
- Directly connect your Bluetooth A2DP enabled smart phone for audio streaming without the need of a radio
- Play and control music and apps like Spotify and Pandora wirelessly
- Easy pairing with auto reconnect that will automatically connect to your in-range device
- Waterproof with conformal coated circuit board and UV coatings
- Illuminated multi-functional controller
- Aux input for wired audio connection to portable media device
- 1 pair of preamp outputs
- Illuminated multifunctional controller
- Compatible with iPhone®/iPod®, smartphones & MP3 players
- Built-in 1A charger allows you to charge your USB connected device thru this units USB port.
- Does not require head unit
- 4 Ohm stable operation
- Dim: 1.69"H x 7.75"W x 3.75"D
-
Inputs and Outputs:
- Total Power Output: 500 Watts
- RCA Inputs: 2 Channel
- Signal to Noise Ration: 90 dB
- USB output voltage: 5VDC @ 1A
-
Max Power Output:
- 4-Ohms: 125 watts x 4 channel
-
RMS Power Output:
- 4-Ohms: 94 watts x 4 channel
-
Built in Crossover:
- Frequency Response: 20 Hz - 20K Hz
-
Dimensions:
- Overall Dimensions: 1.69” (H) x 3.75” (D) x 7.75” (W)
-
Current consumption:
- Recommended Fuse: 15A x 1
| Manufacturer | Boss Audio |
|---|---|
| Part Number | MC900B |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Un-Bridged Mode | 4 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 2 volts |
| Speaker level inputs | No |
| Gain Control | No |
| Bass Knob / Remote Gain | No |
| Built in Crossover | None |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 791489100762 |
| Return period | 30 days |
| Exchange period | 30 days |
