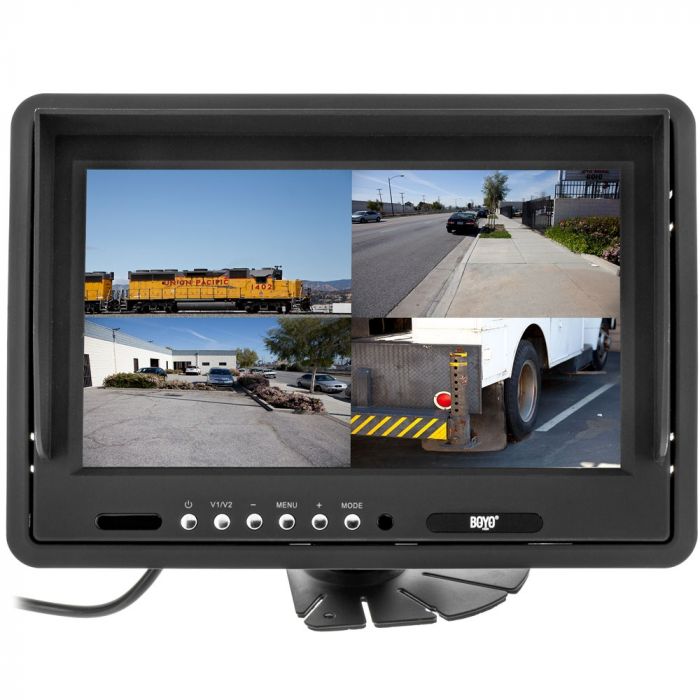

DISCONTINUED - Boyo VTM9001Q 9" Universal Quad-Screen 4 Channel Backup Monitor
$203.99
In stock
Only 1 left
SKU
VTM9001
Expert Knowledge
Talk to a specialist
Unit includes: LCD Monitor, Mounting stand, Flush mount shroud, Sun shield, Remote control, Wiring harness, and Instruction manual
Boyo VTM9001Q 9" Universal Quad-Screen 4 Channel Backup Monitor
Features:
Dimensions:
Boyo VTM9001Q 9" Universal Quad-Screen 4 Channel Backup Monitor
Features:
- 9" Quad-Screen monitor with flush mount bucket and sun shade
- 12 volt reverse trigger to automatically turn monitor on and select video input
- Built in speaker for audio playback - Single audio input
- 16:9 wide screen letterbox display
- Slide track on back of monitor to accept various LCD monitor mounts
- Embedded 1/4" - 20 nut on bottom of monitor to accept various mounts LCD monitor mounts
- Includes top of dash windshield mount with two way adhesive tape, 90 degree vertical angle adjustment
- High Resolution: 800 x 480 pixels
- Video system: NTSC/PAL auto switching
- OSD - On Screen Display for image adjustments ( Contrast, Brightness, Hue, Saturation, Source, Aspect ratio, and Volume
- 4 - way picture rotation function, reverse / non-reverse and normal / vertical flip
- Full Image / 2 Images / 4 images Selectable
- Includes wireless remote control
- Power consumption: 12Vdc - 400ma
- Storage temperature: -20° C - 80° C
- Operating temperature: -5° C - 50° C
-
Inputs and Outputs:
- 4 - Video inputs
- 1 - Audio mono input
- 4 - 12 volt triggers for each video input
- 1 - 12Vdc power input
Dimensions:
- Monitor dimensions: 9" (W) x 6" (H) x 1-1/16" (D)
- Shroud dimensions (Not cutout): 9-7/8" (W) x 6-15/16" (H) x 1-1/4" (D)
- Shroud cut out dimensions: 9-1/4" (W) x 6-1/4" (H) x 1-1/8" (D)
| Manufacturer | Boyo |
|---|---|
| Part Number | VTM9001Q |
| LCD Screen Size | 9 inch - 10 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| Touchscreen | No |
| Built-in DVD Player | No |
| Built in Speakers | Yes |
| VGA input | No - VGA input |
| Audio Video inputs | 2 Video Inputs |
| Composite video input | Yes |
| Built in Phone Mirroring | No |
| Housing material | Plastic |
| Slide track on back | Yes |
| Mounting thread for stand mount | Yes |
| Mount included | Yes, Pedistal stand |
| Trigger wire | Yes |
| Quad Screen | No |
| Operation Voltage | 12-24 Volt DC |
| Wireless Remote Control | Yes |
| Monitor Color | Black |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 689076350112 |
| Return period | 30 days |
| Exchange period | 30 days |
