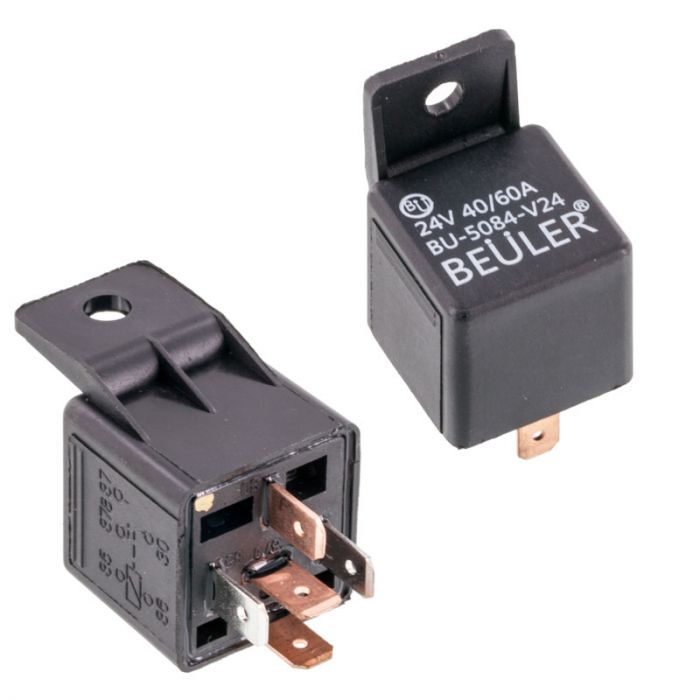

Beuler BU5084V24 Waterproof 24 VDC Commercial Vehicle 5-Pin Relay SPDT 40/60A Plastic tab

Beuler BU5084V24 Waterproof 24 VDC Commercial Vehicle 5-Pin Relay SPDT 40/60A Plastic tab

Beuler BU5084M Waterproof 12 VDC Automotive 5-Pin Relay

More Views

Beuler
Free Shipping on orders $99+

Overall Rating 5 (Based on 1 reviews)

Beuler BU5084V24 Product Highlights

  • 24 VDC rated coil with minimum 18 volt to trigger
  • Waterproof design
  • Bosch style relay
  • Plastic tab is included
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: 24 volt relay and Plastic tab

Beuler BU5084V24 Waterproof 24 VDC Commercial Vehicle 5-Pin Relay SPDT 40/60A Plastic tab

The Beuler BU5084V24 relay is unique being that it is a 24 volt waterproof relay. The Bosch style 24V, 40A/60A relay is popular in commercial vehicles and other vehicles that use a 24 volt charging system. It easily switches 40 amps of current and peaks of 60 amps with minimal draw on the coil of 80 milliamps @ 24Vdc. It features a Plastic tab with sealed plastic housing. Single Pole, Dual throw for flexible installations and multiple uses.

    Features:
  • Imported Bosch style relay
  • Plastic tab is included
  • Sealed Waterproof design
  • 40 amp / 60 amp rated contacts
  • SPDT - Single pole dual throw
  • 24 VDC rated coil with minimum 18 volt to trigger
  • Power consumption @ 24Vdc 80 mA
  • Conventional 87, 87a, 30, 86, and 85 pin locations
  • Compatible with most insulated and non insulated terminals and relay sockets
  • Dimensions 1-1/8" (W) x 1-1/4" (D) x 2" (H) with terminals and plastic tab

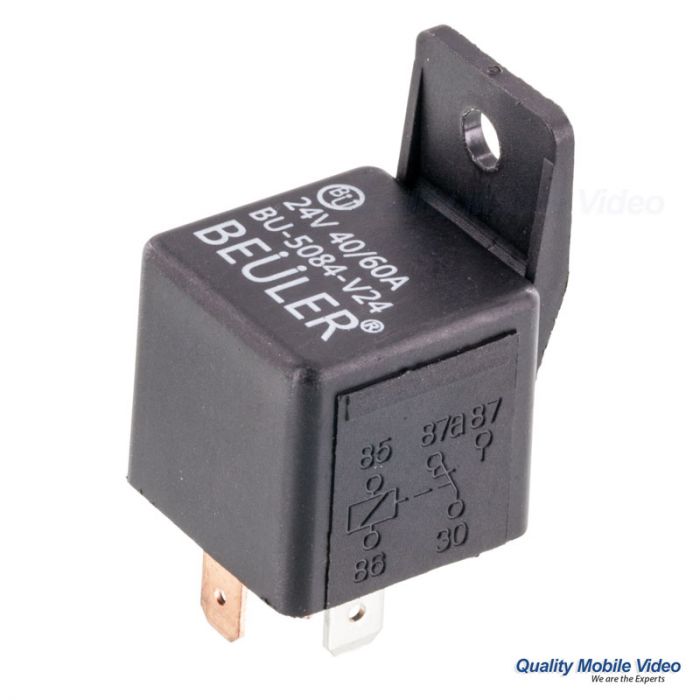

    Pin configuration:
  • Pin 86 - Coil
  • Pin 85 - Coil
  • Pin 30 - Common Pin
  • Pin 87a - Normally closed pin
  • Pin 87 - Normally open pin

Technical Specifications

Manufacturer Beuler
Part Number BU5084V24
Operation Voltage 24 Volt DC
Relay type 5 Pin relay
Current capacity 40 Amp / 60 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Plastic Tab
Waterproof ingress protection Waterproof
Warranty 1 Year
UPC Code No

Customer Reviews

As easy as a 12 volt relay
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Nice to find a relay like this that has a 12 volt type relay layout, super easy to wire up. (Posted on 10/5/2016)
