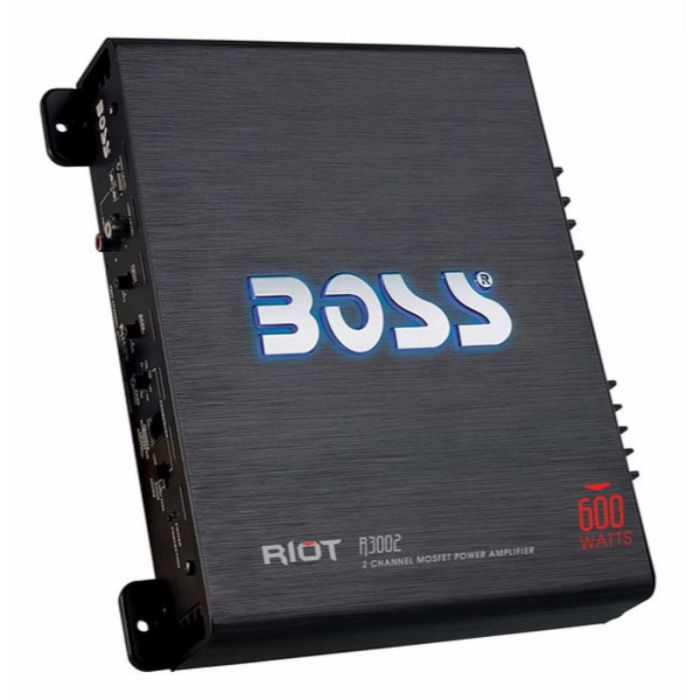

Boss Audio R3002 Riot Series 2 Channel Class AB Full Range Amplifier - 600 Watts

Rating:
100 % of 100
$79.99
In stock
SKU
R3002

Key Features

  • Boss Audio R3002 Riot Series Class AB Amplifier
  • Stable performance at 2 ohms
  • RMS Power @ 4 ohms: 2 x 113 Watts
  • Versatile amplifier
  • 2 Channel RCA Inputs
  • Total Power Output of 600 Watts

The attractive Riot Series is a 600 Watts 2 Channel Full Range, Class AB Amplifier generates a maximum of 600W power with a minimum 2 ohm impedance. Full range class AB amplifiers easily power door speakers or subwoofers and have the capability to generate high quality sound with minimal distortion. Class AB amplifiers are extremely linear and have reduced distortion but are not as power efficient as Class D amplifiers. Enjoy superior sound!

This two channel amplifier is capable of being bridged. Bridging channels in an amplifier is a feature where you combine the output of two channels to power a single or dual subwoofer. The MOSFET or Metal Oxide Semiconductor Field Effect Transistor which is used to to create the high current power supply and is far superior when compared to other FETs. The built in thermal protection circuits turns off and lets the amplifier cool down to prevent damage. Additional features like the Speaker level inputs, Subwoofer level control, Variable gain control, Variable bass boost, Fixed High-Pass Filter and Variable low pass filter provides the user with a clean input signal and the to customize and tune into your audio system.

Unit includes: Car Amplifier, Mounting hardware and instruction manual.

Boss Audio R3002 Riot Series 2 Channel Class AB Full Range Amplifier - 600 Watts
    Features:
  • BOSS AUDIO R3002, RIOT 600 Watts 2 Channel Full Range Amplifier
  • Exhilarating performance with Class AB amplifier
  • Stable 2 ohms performance
  • Back-lit Illuminated BOSS logo in cool blue
  • Versatile and Bridgeable Amplifier
  • Robust MOSFET Power Supply
  • Triple Protection with Thermal, overload and short protection
  • High and Low level Inputs
  • Fixed High-Pass Filter
  • Variable Low-Pass Filter
  • Variable levels of Bass Boost
  • Remote Subwoofer Controller
  • Blue Back-lit Illuminated BOSS Logo
    Performance:
  • Total Power Output: 600 Watts
  • Peak Power @ 2 ohms: 2 x 300 Watts
  • Peak Power @ 4 ohms: 2 x 150 Watts
  • Bridged Power @ 4 ohms: 1 x 600 Watts
  • RMS Power @ 4 ohms: 2 x 113 Watts
  • Bridged RMS Power @ 4 ohms: 1 x 450 Watts
  • Total RMS Power @ 4 ohms: 2 x 113 Watts
  • Speaker Impedance: 2 to 8 ohms
  • (Total Harmonic Distortion) T.H.D level: 0.01%
  • Channel separation ≥ : 90 dB
  • 102 dB of Signal to Noise ratio (A-Weighted)
  • 9 Hz to 50 kHz ±1 dB of Frequency Response
    Connections:
  • 2 Channel RCA with High Level Inputs
    Controls:
  • Variable Bass Boost up to 18 dB
  • Subwoofer Level Controller
  • Low Pass Filter: 35 Hz - 160 Hz
  • High Pass Filter: Fixed 200 Hz
    Dimensions of Product:
  • Length of 9.16”
  • Width of 10.44”
  • Height of 2.25”
    Warranty duration:
  • Standard Warranty: 1 year period
More Information
Manufacturer Boss Audio
Part Number R3002
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Preamp voltage 4 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 791489115308
Return period 30 days
Exchange period 30 days
