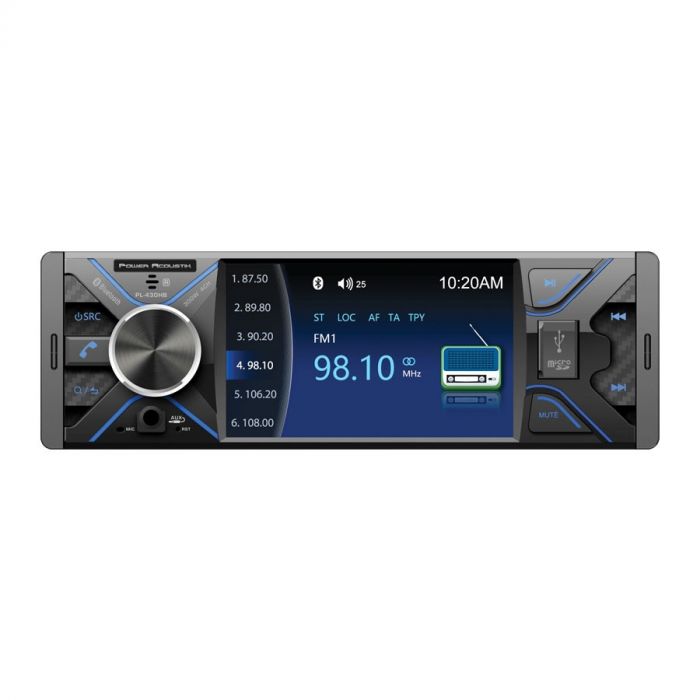

Power Acoustik PL-430HB Single DIN Receiver with 4.3" LCD Display, Bluetooth and Android PhoneLink

Description

Unit includes: Double DIN Stereo, Wireless Remote Control, Three Wiring harnesses, Mounting hardware, Mounting Brackets, Angled USB Cable, and Instruction manual

Power Acoustik PL-430HB Single DIN Receiver with 4.3" LCD Display, Bluetooth and Android PhoneLink

Features:

Single DIN Receiver with 4.3" LCD Display
800×480 LCD w/ Adjustable Backlight
SmartSense Clear Glass Capacitive Touchscreen
7-Color RGB LED Illuminated Keys & Accents
Bluetooth 4.0 Phone Calling + A2DP Audio Streaming
Back-up Camera RCA Input w/ +12V Auto-on Trigger
10-Band 8dB Boost/Cut Equalizer & Preset EQs
Built in microphone for voice recognition
Front USB port
Front SD Card slot
Front 3.5mm AUX input
No disc slot*

Digital Media Playback:

Video & Audio Playback from Up to 64GB USB Flash Drive or Micro SD Card
1080p MP4 & WMV Video Playback; MP3 & WMA Audio Playback

Bluetooth:

Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
Internal microphone on the front of unit
Bluetooth 2.0+ certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above

Android PhoneLink:

Enable Smart Device mirrors display to head-unit
2-way communication enables mobile device control
Stay connected without handling distracting devices
Retains use of smart device's voice recognition service
Connection requires original USB charging cable
1A USB charging maintains battery life

Inputs and Outputs:

2 - 2V Pre-Amp Outputs (Front and Rear Speakers)
1 - Subwoofer Pre-Amp Output
2 - Rear Video outputs to connect to an external monitors
1 - Rear Radio Antenna
1 - Rear Power/Ground Wiring Harness
1 - Rear Speaker Wiring Harness
1 - Rear Car Functions Wiring Harness(Steering Wheel Control, Amplifier, Parking Brake)
1 - Front USB input
1 - Front AUX input
1 - Rear Camera input
1 - Front Camera input
1 - Micro SD Card input
1 - Rear set of RCA AV Inputs

Double DIN chassis
Dimensions: 7"W x 7"D x 4"H

Specifications

More Information
Manufacturer	Power Acoustik
Part Number	PL-430HB
Chassis Size	Single DIN
Illumination color	Full Color
Faceplate features	None
Disc Playback	No
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
Audio Video Outputs	2 Video outputs
USB input	Yes
SD Card input	Yes, microSD Card
Audio Formats	AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs	3 Pairs (Front, Rear, Sub)
Preamp voltage	4 volts
Steering Wheel Control	Yes, Built in control
Built in Crossover	High-pass, Low-pass
Warranty	1 Year
Return period	30 days
Exchange period	30 days
