Boyo VTL420CL Black Zinc Metal Bartype License Plate Camera with Built-In 3 Watt LED Lights

Boyo VTL420CL Black Zinc Metal Bartype License Plate Camera with Built-In 3 Watt LED Lights

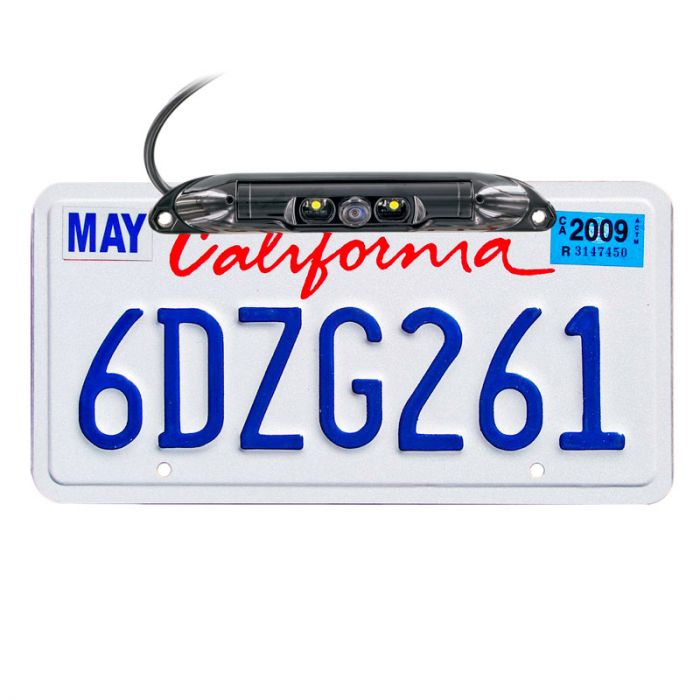

Boyo VTL420CL Black License Plate Camera with LED Lights - License Plate Mount

More Views

Boyo
Free Shipping on orders $99+

Overall Rating 4 (Based on 1 reviews)

Boyo VTL420CL Product Highlights

  • Zinc metal bar-type license plate backup camera
  • PC3030 1/3 inch CMOS image sensor
  • Black Finish
  • 170 Degrees Wide Angle View
  • Push button turn on LED Lights for excellent night picture
  • Selectable parking grid
  • Selectable reverse and non-reverse image for front or rear camera use
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

Unit includes: Black license plate camera, Power Lead, RCA Video Cable, 26ft Extension Cable and Instruction manual

Boyo VTL420CL Black Metal Bar-type License Plate Backup Camera
    Features:
  • Bar style license plate holder with integrated backup camera for easy installation on virtually any vehicle
  • Black finish on full zinc metal frame, no plastic
  • PC3030 1/3 inch CMOS image sensor
  • 480 TVL Horizontal Resolution
  • (2) 3 Watt integrated LED's to illuminate area behind vehicle, LED's are manually turned on with a button press
  • Remarkable low light performance of 0.1 Lux when LED's aren't used
  • 170 degree viewing angle for minimal image distortion
  • Camera can be used as a front or rear camera, push button switch to flip image, reverse and non-reverse
  • 3 Color Parking grid lines for distance reference gauge, with the push of a button grid lines can be enabled and disabled
    Quick specs:
  • 480 TV lines of resolution
  • Pixel area: 640 x 480
  • Waterproof IP67
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Current Consumption: 40mA (+/-10mA) Maximum 300mA when LED's are turned on
  • Power source: 9Vdc - 15 Vdc
  • Video output: 1.0V+/-0.2V
  • Operating Temp: -4° F - 158° F

Technical Specifications

Manufacturer Boyo
Part Number VTL420CL
Auto Dimming No
Camera Sensor type CMOS
Back up camera type License Plate Camera
License Plate Camera Type Bar style
Camera diameter 1/3 inch
Viewing Angle 170 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination LED Illumination
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 794504210057
